Tangshan Caofeidian Haode Gas Co., Ltd. was incorporated on December 27, 2013 with a registered capital of 10 million yuan. The total number of corporate shareholders is 3, including Tangshan Caofeidian Hengran Municipal Gas Co., Ltd. (51% shareholding), Tangshan Caofeidian Xinyuan Lingang Construction Engineering Co., Ltd. (25% shareholding) and Beijing Hongrunke Trade Development Co., Ltd. (24% shareholding).
Receive the self-produced gas source of Jidong Oilfield, the gas source of Yongtang-Qin trunk line, the gas source of gas pipeline and the gas source of LNG gasification pipeline.
Business scope of the company: investment in pipeline gas supporting facilities and supply projects; Gas technology consulting services; Sales of gas-related supporting equipment and appliances; Urban gas supply.
The company obtained the gas franchise right of Caofeidian SME Park on February 26, 2014, and the gas business license on November 24, 2022, covering the following areas: 1. east of Qinglin Road, south of Bohai Avenue, west of Shilihai Zhong'er Road, and north of Zhongbei Road. 2. To the east of Qinglin Road, to the south of Zhongbei Road, to the west of Shilihai Middle Road, and to the north of Shilihai West Road. 3. To the east of Qinglin Road, to the south of Boao Road (Shilihan Road), to the west of the straight extension of Heyun Road, and to the north of Beibian Road.
Two North-South Gate stations have been built successively, and 23.5 kilometers of municipal high and medium pressure natural gas pipelines have been laid, which are responsible for providing gas demand for downstream users in the region. At present, 19 industrial and commercial users have been matched, with a gas consumption of 15000 meters ³/ Days. It has provided high-quality services for industrial and commercial users in the park and contributed to the construction and development of the park.

Haode Gas North Gate Station

The North Gate Station of the Natural Gas Utilization Project in Tangshan Caofeidian Small and Medium-sized Enterprise Park (hereinafter referred to as the North Gate Station) is located on the east side of Qinglin Road, the north side of Miaobei Road, and close to the south side of the constant combustion valve chamber, with a total area of 1154.3 m2 (1.73 mu). The station occupies commercial land,
The station is located in the north of Caofeidian SME Park, mainly providing urban gas source for urban pipe network. The gate station is set up as an unattended station.

Main process equipment

Table of Main Process Equipment of North Gate Station

Number	Name and main contents	Unit	Quantity	Remarks
1	Remarks Filter (DN300)	Tower	2	Equipped with differential pressure gauge
2	Flow meter DN150 Q=16000Nm3/h	Tower	2	With voltage stabilization compensation
4	Pressure regulator DN80 PN ＝ 1.6MPa	Individual	2
5	Maximum odorization capacity of odorization device Q=20000 Nm3/h	Tower	1
6	Electric ball valve DN150 PN=2.5MPa	Individual	1
7	Electric ball valve DN300 PN=2.5MPa	Individual	1

Haode Gas South Gate Station

The South Gate Station (referred to as the South Gate Station) of the Natural Gas Utilization Project in the Caofeidian Small and Medium-sized Enterprise Park of Tangshan City is located on the north side of Hongyuan South Road and the east side of the energy-saving refractory material project, with a total floor area of 3134.14 m2 (4.70 mu). The land occupied by the station is for supply facilities.
The station is located in the south of Caofeidian SME Park, mainly providing urban gas source for urban pipe network. The South Gate Station is equipped with a process unit area and a production auxiliary area. The process unit area covers an area of 88 m2, and the production auxiliary area covers an area of 106.92 m2. The main buildings in the production auxiliary area include a production auxiliary room, including a hot water boiler room, a generator room, a control room, an office, a toilet and a guard room, all of which have a floor area of 17.82 m2. An entrance and exit is set at the south side of the South Gate Station, and the physical enclosure is set around the gate station.
Design service life of buildings and structures of the project (50 years); Buildings and structures are of Class II fire resistance rating; The seismic fortification intensity is 8 degrees.

Technical and economic indicators

1. Total land area 3134.2m2 (4.7 mu)
2. The floor area of buildings and structures is 194.92m2
3. Building coefficient 6.22%
4. Total building area 106.92m2
5. Plot ratio 0.034
6. Road and return yard area 1589.28m2
7. Greening area 1350m2
8. Greening rate 42.07%

Area layout

1. Building functional zoning:

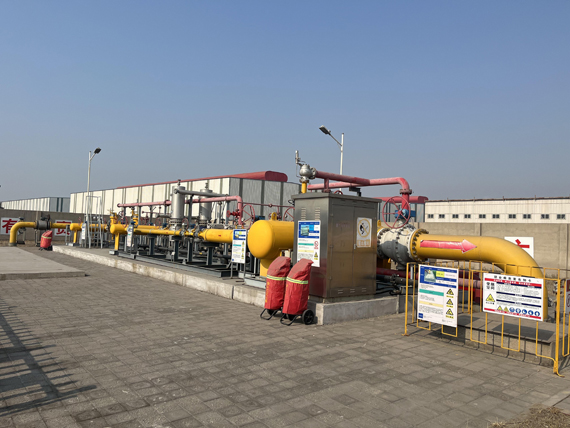

1) Process unit area: located in the north of the station area, mainly including pressure regulation, metering, odorization and other functions. The main function of this area is to provide supporting services for production in the station.
2) Auxiliary production area: the auxiliary production room is equipped with control room, generator room, office, toilet, guard room, water heater room and other functional rooms. The building area of each room is 17.82 m2, and the land area is 106.92 m2. See the table below for details.

List of buildings and structures in South Gate Station

Number	Entry Name		Built-up Area (m2)	Number of plies	Production category	Fire resistance rating	Structural Style
1	Auxiliary production area	Auxiliary production room	106.92	a layer or deck	—	two stage	Frame structure
2	Process unit area	Pressure regulating and metering device	88	--	Class A	two stage	Reinforced concrete foundation

Process flow

The process flow is as follows: the natural gas is introduced from the high-pressure pipeline of Qinglin Road at the South Gate Station. After entering the entrance station, the natural gas is sent to the medium-pressure pipe network of Caofeidian SME Park after odorization, filtration, metering and pressure regulation to 0.35MPa, to supply gas for users in Caofeidian SME Park.

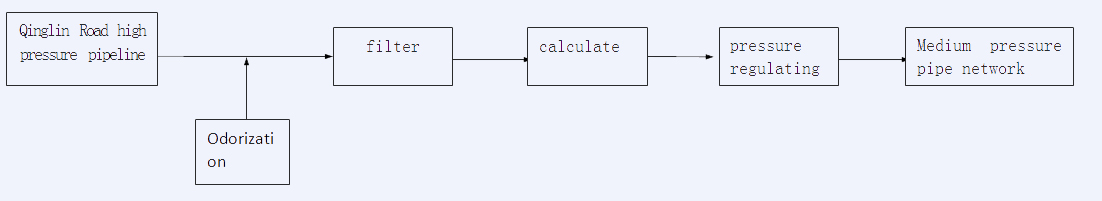

Process flow diagram of South Gate Station:

Process parameters

1) Design scale
Annual gas supply scale                                      1.9 × 108Nm3/a
Calculate the monthly average daily gas supply scale               54.4 × 104Nm3/d
Peak hour gas supply scale                                    3.1 × 104Nm3/h
2) Design pressure
Incoming pipeline                                           4.0 MPa
Outgoing medium pressure pipeline                             0.4 MPa
3) Working pressure
Incoming pipeline                                            3.0 ～ 3.2MPa
Outgoing medium pressure pipeline (users in Caofeidian SME Park)     0.35 MPa

Main process equipment

List of main process equipment of Nanmen Station

Number	Name and main contents	Unit	Quantity	Remarks
1	filter（DN200 PN＝6.4MPa Q=17000Nm3/h）	Tower	2	Equipped with differential pressure gauge
2	flowmeterG1000 DN150 Q=17000Nm3/h	Tower	2	With voltage stabilization compensation
3	Shut-off valve DN150 PN＝6.4MPa	Individual	2
4	pressure regulator DN150 PN＝6.4MPa Q=17000Nm3/h	Individual	3
5	Maximum odorization capacity of odorization deviceQ =34000Nm3/h	Tower	1
6	Ball ValveDN200 PN=6.4MPa	Individual	1
7	Worm gear drive ball valveDN150 PN=6.4MPa	Individual	11
8	Ball Valve DN400 PN=1.6MPa	Individual	1
9	ball check DN500 PN=1.6MPa	Individual	1
10	ball check DN350 PN=1.6MPa	Individual	3
11	Flange ball valve DN100 PN=1.6MPa	Individual	2
12	Flange ball valve DN80 PN=6.4MPa	Individual	2

Fire extinguisher configuration

According to the Urban Gas Design Planning GB50028-2006 and the Code for Design of Extinguisher Distribution in Buildings GB50140-2005, the fire extinguishers in the station are as follows:

Table of Fire Extinguisher Configuration at Gate Station

Number	Entry Name	Model	Quantity
1	Auxiliary production room	ABC8	3
1	Auxiliary production room	MTT30	1
2	Gate station pressure regulation and metering area	ABC8	12
